Choosing a High-Pressure SUP Pump for Boards, Tents, and Boats

A soft paddle board is a frustrating paddle board. Anyone who has watched a SUP flex underfoot mid-stroke knows that inflation pressure isn’t a technicality, it’s the difference between gliding and wobbling. This is where a high-pressure sup pump earns its place in the gear bag, turning a twenty-minute arm workout into a five-minute wait. The right pump doesn’t just fill air, it builds the rigidity that makes an inflatable board behave like a hard-shell one.

Why Pressure, Not Just Volume, Determines Board Performance

Most people assume inflation is about getting air in fast. Speed matters, but pressure is what actually stiffens the board’s drop-stitch core. A board inflated to 10 PSI feels noticeably different from one pushed to 18 or 20 PSI, especially under the weight of a standing paddler.

Low pressure lets the board flex at the center, which saps paddling efficiency and makes tracking sluggish. High pressure locks the internal fibers taut, so the board resists bending even when you shift your weight toward the rails. That’s why manufacturers print a maximum PSI rating on nearly every inflatable SUP, and why a pump capped at 10 or 12 PSI often leaves performance on the table.

The Dual-Stage Approach: Blower Plus High-Pressure Pump

Hand pumps and basic electric pumps use a single mechanism for the entire job, which is slow and inefficient. A better engineering answer splits the task into two stages, matching the right tool to each phase of inflation.

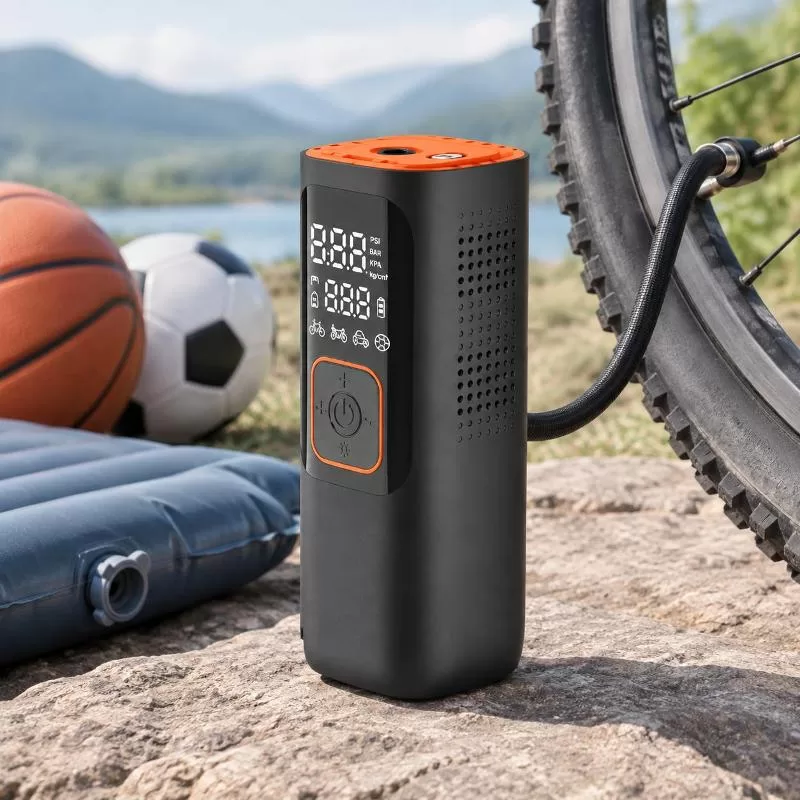

The NW03-P from Newo illustrates this dual-pump logic. It pairs a 220–240 L/min blower for rapid bulk air transfer with a separate 120–130 L/min high-pressure pump that takes over once the board starts holding shape. The blower handles volume quickly; the high-pressure stage handles the harder work of compressing air against resistance up to 20 PSI. Running both tasks through one small motor would mean compromising on either speed or final pressure. Separating them lets each component do what it’s built for.

What 1–20 PSI Range Actually Covers

Not every inflatable needs the same pressure, and a pump’s working range should match the gear it’s meant to serve. A 1 to 20 PSI adjustable range, like the one built into the NW03-P, covers a wide spread of recreational equipment rather than SUP boards alone.

A single pump covering all these items removes the need to own a separate inflator for every piece of gear, which matters most for people who camp, paddle, and travel with multiple inflatables in one trip.

Why Cordless Operation Changes Where You Can Inflate

Tethering a pump to a wall outlet has always been the biggest limitation of electric inflation. Riverbanks, beaches, and campsites rarely have power nearby, so cordless capability isn’t a convenience feature, it’s what makes the pump usable at all in those locations.

The NW03-P runs on an integrated battery pack built from eight 2600mAh cells, totaling 14.8V and 76.96Wh according to the product specifications. The product’s listed specifications indicate a full charge inflates about four 2.8-meter paddle boards, with a runtime near 40 minutes per charge. For a group paddling trip or a weekend of swapping between a SUP and an air mattress, that’s enough margin to avoid mid-trip battery anxiety.

Vehicle power adds a second layer of flexibility. The pump also accepts 12V–16V input through a standard cigarette-lighter connection, so a depleted battery doesn’t strand anyone at the parking lot before a launch.

Charging, Power-Bank Output, and Practical Trade-Offs

Charging speed and multi-use power features often get overlooked until they become the deciding factor between two similar pumps. The NW03-P charges via Type-C, taking about 4.5 hours for a full cycle, and doubles as a power bank with 5V/3A, 9V/2A, and 12V/2A output options.

That dual role matters on longer trips. A phone running low on a remote beach, or a camera needing a top-up before sunset photos, can draw from the same battery that inflates the gear. It’s a small design choice, but it reduces the number of devices someone has to pack.

Battery longevity is worth setting realistic expectations around. The listed cycle life is 100 charge cycles before capacity drops to around 80% of original, which is a normal range for lithium battery packs in portable electronics, not a flaw unique to this category of product.

Automatic Shut-Off and Why Manual Pressure Judgment Fails

Guessing when a board is "firm enough" by hand is unreliable, and overinflating has real consequences. Drop-stitch seams can be stressed, and valves can fail under excess pressure. Automatic pressure control removes that guesswork.

Preset modes and custom pressure settings, paired with an LED display showing live readings, let the pump stop automatically once the target PSI is reached. This single feature does three things at once:

• Protects the inflatable from pressure-related seam stress
• Removes the need to repeatedly check firmness by hand
• Lets the user walk away and prep other gear while inflation finishes

For anyone managing multiple inflatables before a trip, that hands-off reliability saves real time, not just effort.

Matching Flow Rate to Inflatable Size

Flow rate decides how long inflation takes, and larger items magnify small differences in L/min output. A blower rated at 220–240 L/min moves a meaningful volume of air quickly during the initial fill phase, which is where most of the waiting time would otherwise accumulate.

Once the item is mostly full, flow rate becomes less important than pressure capability, which is exactly when the high-pressure pump stage takes over at 120–130 L/min. This staged handoff explains why dual-pump systems consistently outperform single-stage pumps on large-volume items like SUP boards, inflatable boats, and air mattresses, even when the single-stage unit claims a similar top PSI number.

Noise, Temperature Range, and Where That Matters

Specifications that seem minor on paper often decide whether a pump is pleasant or irritating to use outdoors. Noise level and operating temperature fall into that category.

The NW03-P is rated at 95 dB or below at one meter, and functions across a working temperature range of -10°C to 45°C according to its listed specs. That range covers most camping and paddling conditions, from early spring lake trips to midsummer coastal heat, without the pump derating or shutting down unexpectedly.

Common Questions About High-Pressure Electric SUP Pumps

Does a higher PSI rating always mean a better pump?
Not necessarily. PSI rating matters only if the pump can also deliver adequate flow rate during the bulk-fill phase. A pump with a high PSI ceiling but weak airflow will still take a long time to fill large items.

Can one pump really handle both a SUP board and a yoga ball?
Yes, as long as the pressure range is wide enough. A 1–20 PSI range accommodates low-pressure items like pool toys alongside high-pressure gear like paddle boards, provided the correct nozzle adapter is used.

Is cordless power reliable enough for a full SUP session?
Based on manufacturer specifications, a full charge on the NW03-P supports around four 2.8-meter boards, which comfortably covers a typical group outing before a recharge is needed.

What happens if the pump overshoots the target pressure?
Automatic shut-off is designed to stop the motor once the set PSI is reached, which is why preset and custom pressure modes exist, reducing reliance on manual monitoring.

Choosing the Right Pump for Your Gear Lineup

Selecting a pump comes down to matching three variables to actual usage: pressure ceiling, portability, and versatility across inflatable types.

1. Confirm the maximum PSI needed for your largest or firmest inflatable, usually the SUP board.
2. Check whether the pump supports cordless use if inflation happens away from vehicles or outlets.
3. Verify the pressure range covers smaller items too, avoiding the need for a second pump.
4. Consider charging method and battery capacity against how many items need inflating per outing.

A pump built around these priorities stops being a single-purpose SUP accessory and becomes a general outdoor inflation tool, covering tents, kayaks, and mattresses with the same unit.

Pressure range, dual-stage airflow, and cordless flexibility are what separate a dedicated high-pressure sup pump from a basic hand pump or low-end electric inflator. For paddlers juggling a board, a tent, and an air mattress on the same trip, that versatility is less about convenience and more about not needing three different tools to do one weekend’s work.
