Precision Airflow Mechanics in a Battery-Powered Ball Pump

Sports equipment requires exact internal pressure to function correctly. A slight deviation alters bounce dynamics, affects trajectory, and ruins the tactile feel. Players often struggle with manual hand pumps or overly aggressive air compressors. Finding a reliable battery-powered ball pump solves this exact mechanical mismatch.

Most standard vehicle inflators push large volumes of air rapidly. This approach creates sudden pressure spikes inside small inflatable bladders. The delicate butyl rubber inside a basketball cannot handle rapid thermal expansion. A dedicated low-pressure system prevents microscopic tears in the valve structure.

The Physics of Low-Pressure Bladder Inflation

Engineers separate low-pressure sports inflation from high-pressure vehicle applications. The target range for most sports balls sits strictly between 2 and 12 PSI. Hitting this narrow window requires a specialized control mechanism. The internal sensor must detect micro-fluctuations during the active inflation cycle.

The fundamental geometry of a sports ball relies on uniform internal pressure. When pressure exceeds the specified manufacturer rating, the outer synthetic panels stretch unevenly. The integrated LED pressure display provides a real-time diagnostic of this internal state. Users monitor the precise baseline before engaging the system.

Consider the internal mechanics of the P101 model. It restricts its maximum airflow to a deliberate 3.5 liters per minute. Faster inflation rarely equals superior performance. Pushing massive air volumes through a tiny needle creates severe thermal friction. This heat physically melts the butyl rubber surrounding the valve stem.

A restricted air velocity ensures the microprocessor functions accurately. The logic board reads the internal pressure continuously, anticipating the exact moment to trigger the shut-off protocol. This deliberate pacing prevents the sudden over-inflation that distorts the spherical geometry of the ball.

Acoustic Dynamics in Micro-Compressors

Mechanical air compression is historically a violent process. Motor vibration and piston movement generate harsh acoustic frequencies. Using industrial devices in indoor sports facilities often creates a disruptive echo. Proper acoustic management requires treating the device like a miniature sound chamber.

Minimizing sound transmission involves suspending the internal motor assembly. The official acoustic rating for this specific hardware notes decibels as low as 30 dB from a one-meter distance. While laboratory conditions omit background noise, this metric indicates a deliberate shift away from aggressive high-rpm piston designs.

A smaller motor operating at a steady baseline generates minimal mechanical resonance. The compact 90 by 63 by 40 millimeter housing relies on tight physical tolerances. This specific physical design choice prioritizes a tolerable ambient sound profile over raw pneumatic force.

Power Distribution and Thermal Stability

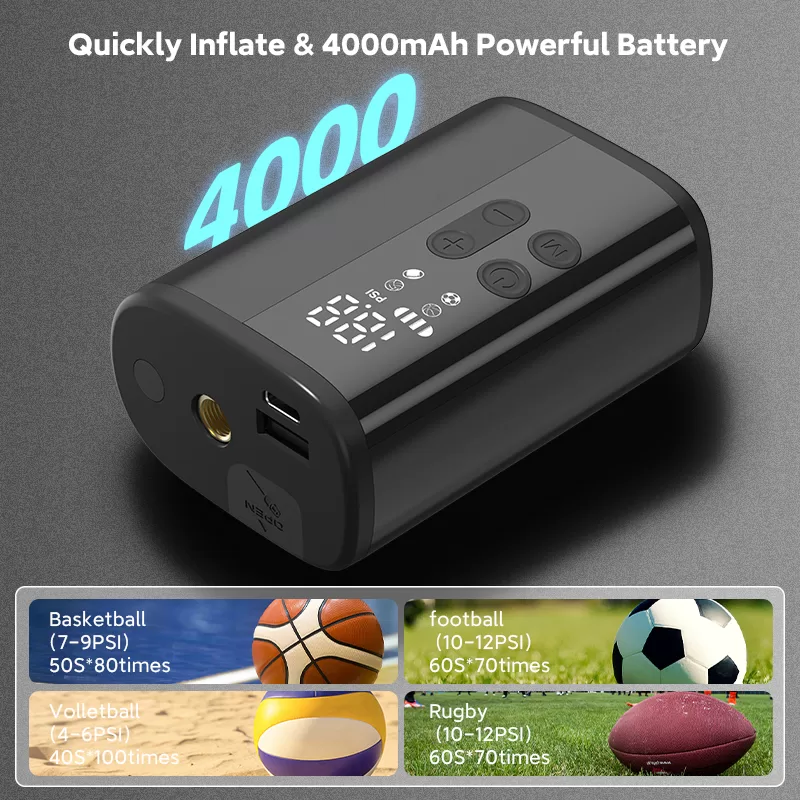

Energy storage dictates the functional lifespan on the court. A standard university training session might require topping off dozens of balls simultaneously. The system relies on a single 4000mAh battery cell, operating at a nominal 3.7 volts. This specific configuration yields a total physical energy capacity of 11 watt-hours.

Translating raw battery data into real-world utility requires mapping the current draw. A slow-moving motor operating against low back-pressure consumes power highly efficiently. This efficiency allows the battery-powered ball pump to inflate approximately 150 basketballs on a single charge. The continuous runtime stretches near four hours under ideal conditions.

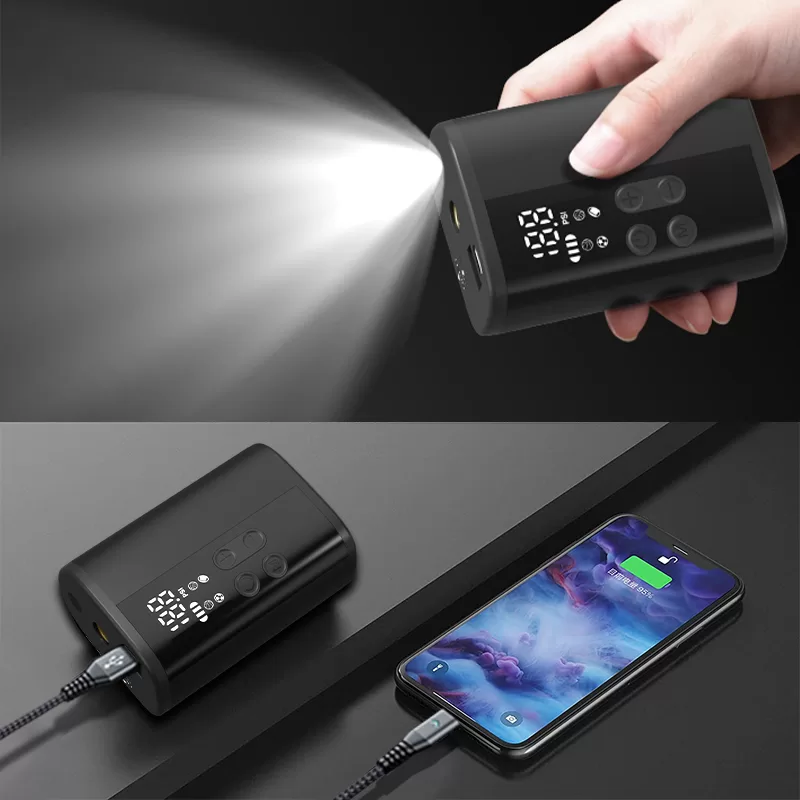

For us, building redundancies into the hardware architecture is a practical necessity. The internal circuit board manages dual power flows through the Type-C port. The hardware accepts a 5V 2A input for its own internal charging. It simultaneously supports a 5V 1.5A external output for separate electronic devices.

Portable electronics frequently fail during extreme ambient temperature shifts. Lithium-ion cells experience severe internal resistance when left on frozen athletic fields. Operating safely between minus 10 and 45 degrees Celsius requires strict voltage thresholds. The firmware cuts off power if the cell drops below 3 volts, preventing permanent degradation.

Examining the core electrical specifications reveals the absolute system limits. These specific operational thresholds dictate how the device performs across different physical environments.

• Maximum system pressure restricts to 12 PSI
• Measured air flow stabilizes at 3.5 L/min
• Battery protection limits trigger at 4.2V and 3V
• Safe environmental temperature spans -10°C to 45°C

Common Technical Misconceptions Addressed

Users frequently misinterpret the relationship between airflow speed and mechanical quality.

Question: Why shouldn’t I use a standard garage air compressor for my volleyball?
Answer: High-volume compressors lack crucial low-pressure sensitivity. They inject air far faster than the narrow needle passage can safely accommodate. This physical bottleneck generates heat and permanently damages the internal bladder.

Another common issue involves battery decay in portable sports electronics.

Question: Will the internal power cell lose its capacity if abandoned in a sports bag?
Answer: Lithium-ion chemistry requires routine discharging and moderate temperatures. The specified cycle life guarantees 80 percent original capacity after 300 full charge cycles. Leaving the unit in a baking car trunk accelerates chemical decay.

Maintaining exact pneumatic parameters extends the lifespan of sensitive sports equipment. The underlying engineering requires a strict balance of airflow pacing, battery chemistry, and acoustic isolation. A well-designed battery-powered ball pump eliminates the mechanical guesswork from court preparation. Players can finally focus entirely on their physical performance and technique.
