Why Removable Batteries Matter: Meet NEWO’s EU-Ready Mini Bike Pump

  • Newo
  • 2026.09.03
  • 3

Product Innovation · BL09 Series

The next mini bike pump is not only smaller—it is designed to be easier to maintain.

Meet NEWO’s removable-battery mini electric bike pump: a compact 120 PSI inflator developed for modern cycling and the EU’s shift toward more repairable, circular battery-powered products.

Removable Battery Up to 120 PSI Brushless Motor Auto Stop

Mini electric pumps have transformed roadside inflation. They replace a bulky hand pump with a pocket-size device that can measure pressure, inflate a tire and stop automatically. But the next design question is becoming just as important as size and pressure: what happens when the battery reaches the end of its useful life?

The NEWO BL09 series answers that question with a removable battery architecture. It combines everyday cycling performance with a product design direction that supports longer service life, easier battery replacement and more responsible end-of-life handling.

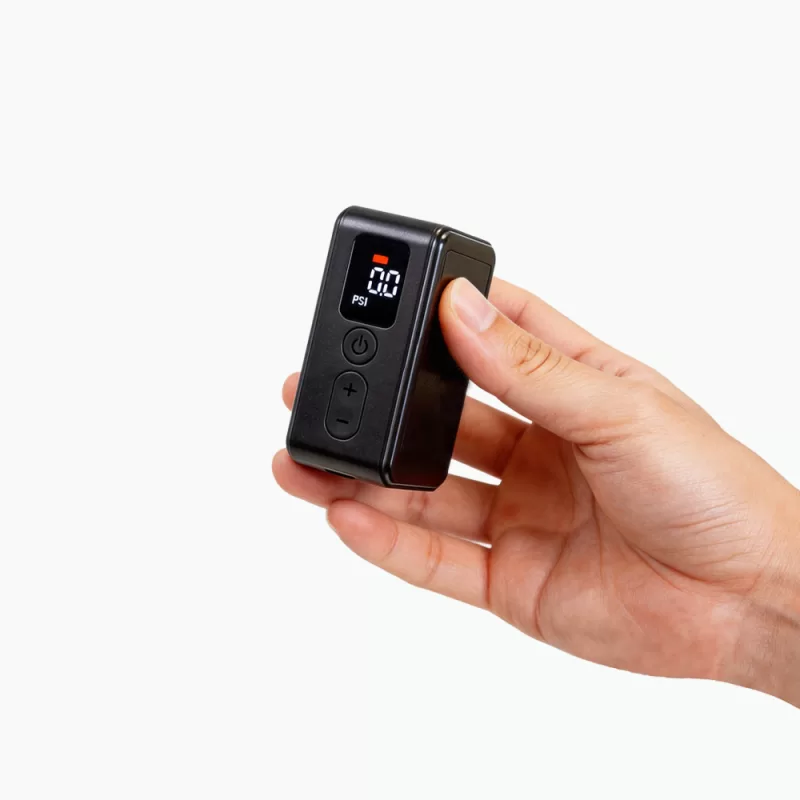

NEWO BL09 removable-battery mini electric bike pump held in one hand
The compact BL09 mini bike pump is designed around portability, digital pressure control and a removable battery architecture.

At a Glance

73 × 52 × 33 mmCompact product size
Approx. 130.8 gNet product weight
2–120 PSIPressure setting range
24 L/minMeasured airflow

01 · Why the Design Matters

Europe Is Moving Toward Replaceable Portable Batteries

Article 11 of Regulation (EU) 2023/1542 introduces requirements for portable batteries incorporated into products to be readily removable and replaceable by the end user. The provisions apply from 18 February 2027, subject to the regulation’s definitions, instructions, safety conditions and applicable derogations.

This direction is about more than opening a battery door. It is intended to help products remain useful for longer, make replacement more practical and support better collection and recycling of used batteries. The European Commission describes replaceability as an important step toward extending product life and reducing post-consumer waste.

Official References

Read Regulation (EU) 2023/1542, Article 11 and the European Commission overview. Final compliance must be assessed for the complete product, supplied battery, instructions, spare-parts plan and target market.

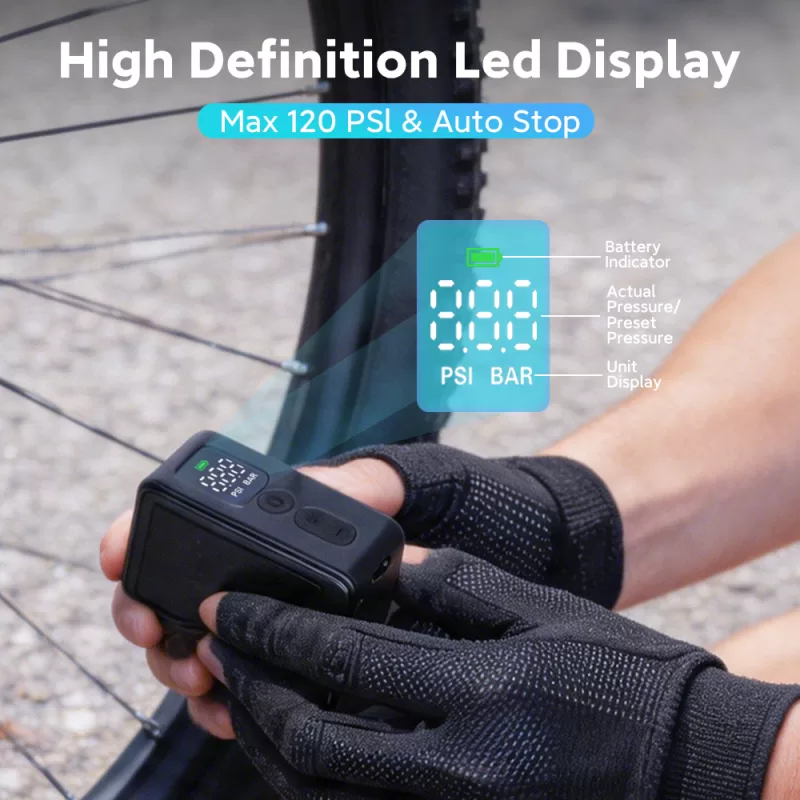

BL09 mini bike pump LED pressure display with auto-stop function
The LED display shows battery status, actual pressure, preset pressure and the selected unit.

02 · Smart Inflation

Preset the Pressure, Then Let Auto Stop Take Over

An integrated high-precision pressure sensor measures tire pressure while the LED display shows the actual and preset values. Riders can adjust the target with the plus and minus keys and switch between PSI and BAR.

Once the target is reached, the pump stops automatically. This creates a clearer, more approachable experience for riders who do not want to judge pressure by feel.

03 · Cycling Performance

Small Enough for the Ride, Capable Enough for the Tire

The compact housing measures 73 × 52 × 33 mm and weighs approximately 130.8 g. Inside, a brushless motor, 15 mm cylinder and measured 24 L/min airflow support a pressure setting range of 2–120 PSI.

The removable 2S 500 mAh, 7.4 V battery pack includes NTC temperature sensing, while the protection design includes balancing and over-voltage protection. Charging is through a Type-C port with a 5 V/2 A input.

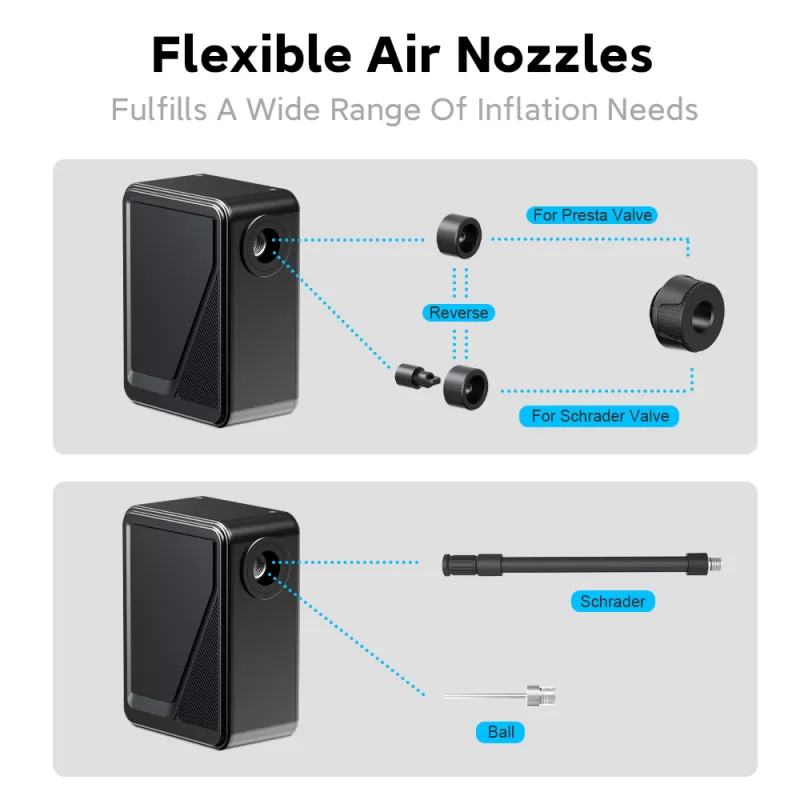

BL09 nozzle options for Presta valve, Schrader valve and ball inflation
Flexible adapters support common Presta and Schrader bicycle valves plus ball inflation.

Measured Specification Snapshot

Key BL09-A Technical Data

ItemSpecificationUser Value
BatteryRemovable 2S 500 mAh, 7.4 V / 3.7 WhSupports replacement and serviceability
MotorBrushless, with over-current protectionCompact electric inflation system
Pressure2–120 PSI; 38 PSI defaultCovers common bike-tire inflation needs
ChargingType-C, DC 5 V/2 A; approx. 40–45 minConvenient charging between rides
Operating temperature0–45°CDefined operating range for product planning
HousingPC V0 flame-retardant plasticDurable enclosure for a compact device

Values above are based on the BL09-A V2.0 product specification dated 17 December 2025. Final production specifications should be confirmed for the selected BL09 configuration.

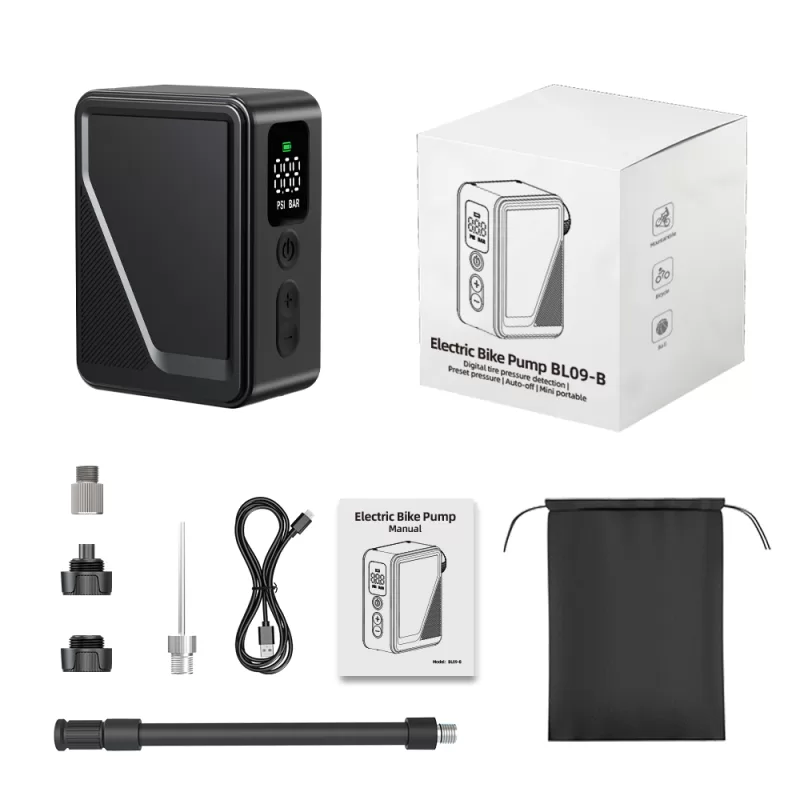

BL09 mini electric bike pump with hose, adapters, charging cable, manual and pouch
A compact product kit with inflation adapters, hose, Type-C cable, manual and storage pouch. Packaging shown represents a BL09-B configuration.

04 · One Pump, Multiple Tasks

Ready for Presta, Schrader and Ball Inflation

The accessory configuration supports common Presta and Schrader bicycle valves and includes a ball needle for sports equipment. The hose improves access around spokes and different valve positions.

A Type-C charging cable, English manual and storage pouch complete a compact kit that is easy to keep in a bike bag, backpack or vehicle.

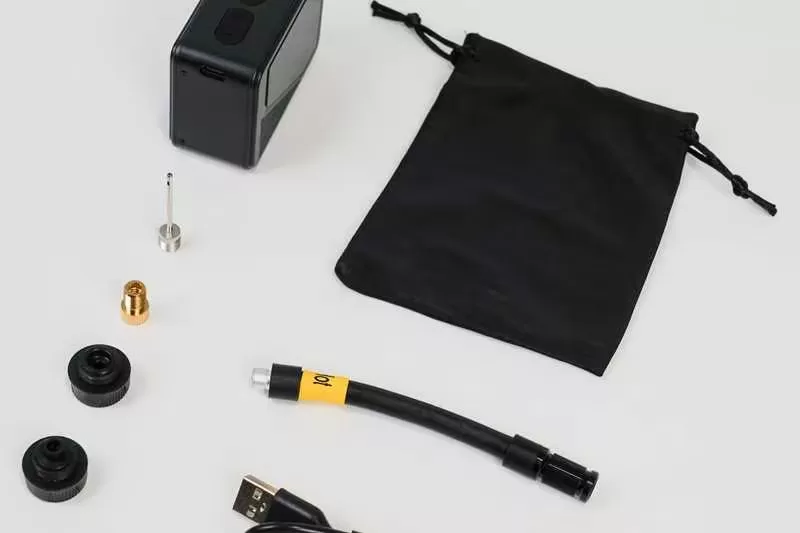

Real product photo of BL09 mini bike pump accessories
Real accessory photo supplied for the BL09-B configuration. Final included accessories should be confirmed per order.

Product-Lifecycle Comparison

Why a Removable Battery Changes the Product Story

Longer Useful LifeA worn battery does not automatically have to mean the end of the complete pump.
Simpler ServiceBattery replacement can become a clearer after-sales process for brands and distributors.
Better End-of-Life HandlingSeparating the battery from the device can support appropriate collection and recycling routes.

For Product Teams

What EU-Focused Buyers Should Confirm Before Launch

Removal MethodConfirm how the complete battery pack is safely removed and replaced.
Instructions & SafetyPrepare clear user instructions and permanent online safety information.
Replacement SupplyDefine compatible spare-battery availability and after-sales responsibilities.
Market DocumentationVerify product, battery, transport, labeling and recycling obligations for each market.

Important Compliance Note

A removable battery is an important design feature, but it does not by itself establish full compliance with Regulation (EU) 2023/1542 or other EU product rules. Importers and brand owners should confirm the final configuration, replacement method, documentation, labeling, spare-parts arrangements and all applicable conformity requirements before placing a product on the market.

OEM · ODM · Wholesale

Build a More Serviceable Mini Pump for Your Cycling Brand

The BL09 platform combines pocket-size portability, digital pressure control and a removable battery concept for brands preparing their next generation of cycling accessories. Contact Smartnewo to discuss configuration, packaging, documentation and OEM/ODM requirements for your target market.
